Mont Cervin Keyboard Kit

Key Features

1. The Mont Cervin is a tented ergo keyboard, with the separate left and right sides mounted on the base.

2. The angle of the keyboard can be adjusted by relocating the position of the weight.

3. Each housing will be attached by magnet, blocked by Poron in between. So each housing will be elevated around 0.5 mm from the base plate.

SPECIFICATION

MOUNT : Gasket O-Ring & Neodium Magnet Mount

TYPING ANGLE : 2.5˚, 7˚, -2˚

LEFT ANGLE : 9˚ - RIGHT ANGLE : 8˚

MATERIAL : BASE PLATE, LEFT , RIGHT HOUSING - A6061-T6

APPROX WEIGHT : 6.7kg (UNBUILT)

What's Included

- CASES (BASE, ANGLE, LEFT TOP,LEFT BOTTOM, LEFT SUPPORT, RIGHT TOP, RIGHT BOTTOM, RIGHT SUPPORT, CENTER BAR)

- Hot Swap PCB

- PLATE (PC, ALUMINUM 1.5t)

- CARRYING ALUMINUM Case

- SWITCH DAMPENER - MIDDLE, LOWER

- NEODIUM (N Pole - 8ea, S Pole - 8ea)

- WRIST PAD 1 set (Leather 4t)

- BOLTS

- PORON 3SHEET (PCB Poron 3.5t, Bottom Poron 3t, Base Poron 1.5t)

- BUMPON (8ea)

- METAL STICKER

COLOR

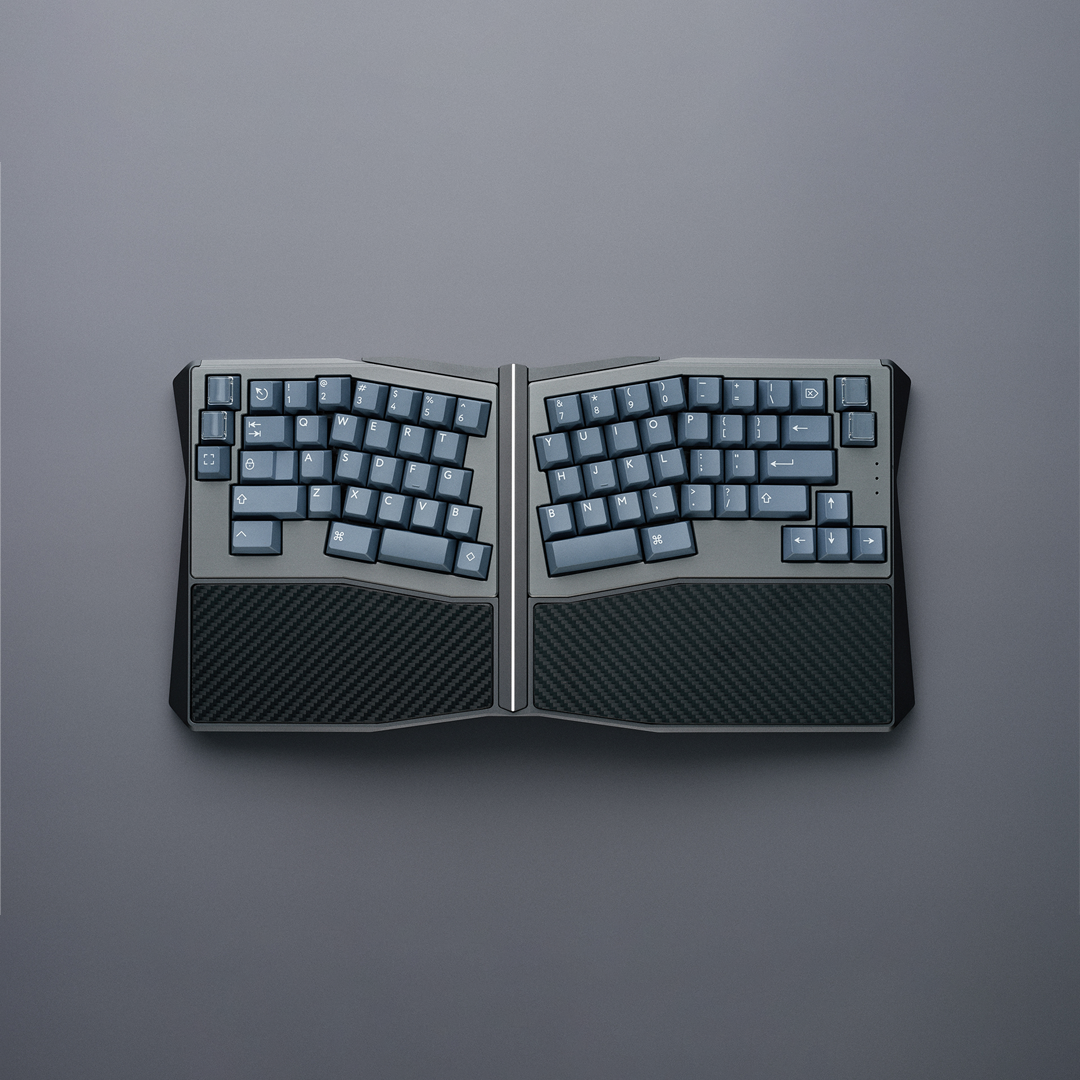

- BLACK ( CENTER BAR : BLACK&BLACK, WRIST PAD : BLACK Leather)

- SILVER ( CENTER BAR : SILVER&CLEAR, WRIST PAD : BLACK Leather)

- GRAY ( CENTER BAR : GRAY&CLEAR, WRIST PAD : GRAY Leather)

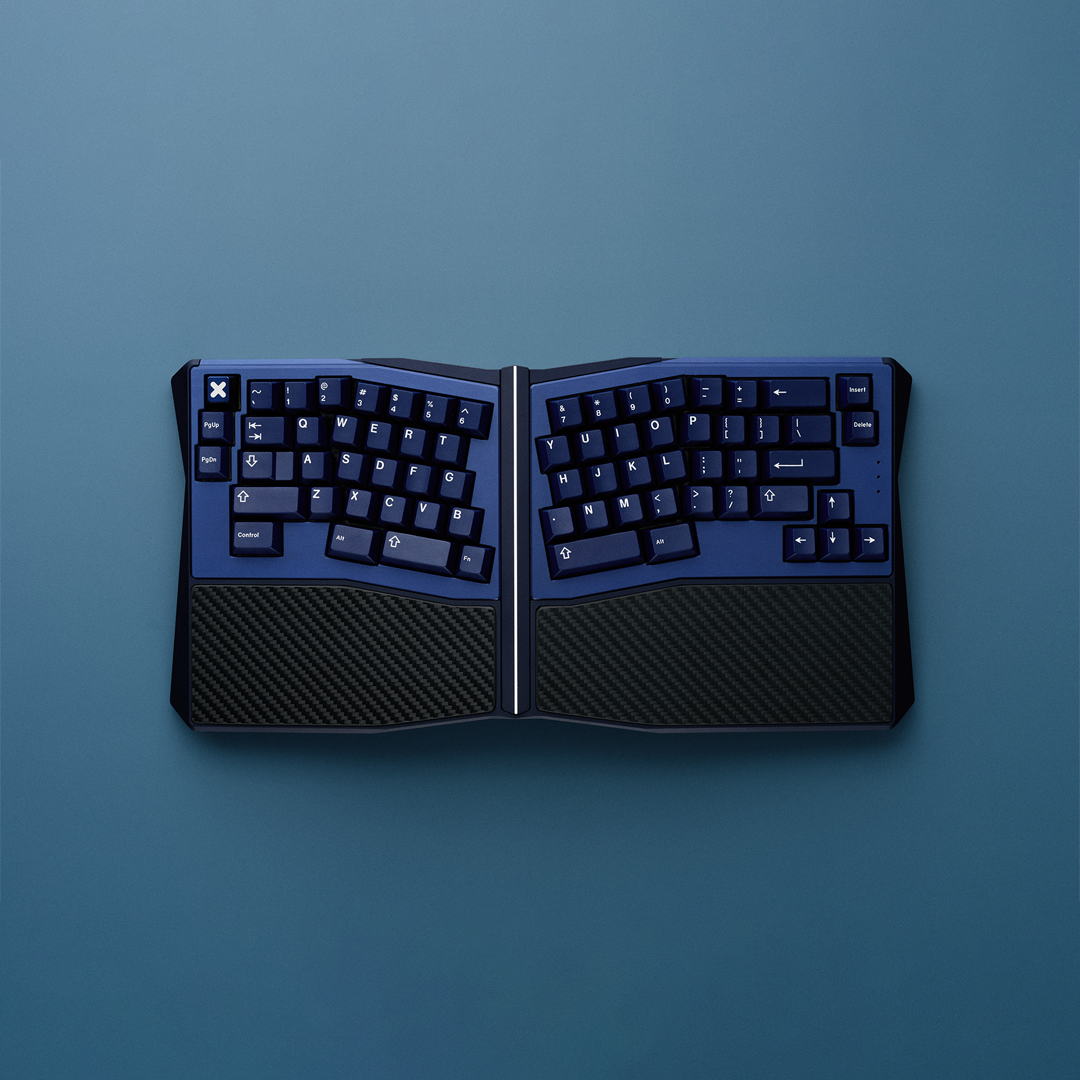

- NAVY ( CENTER BAR  : NAVY&CLEAR, WRIST PAD : NAVY Leather )

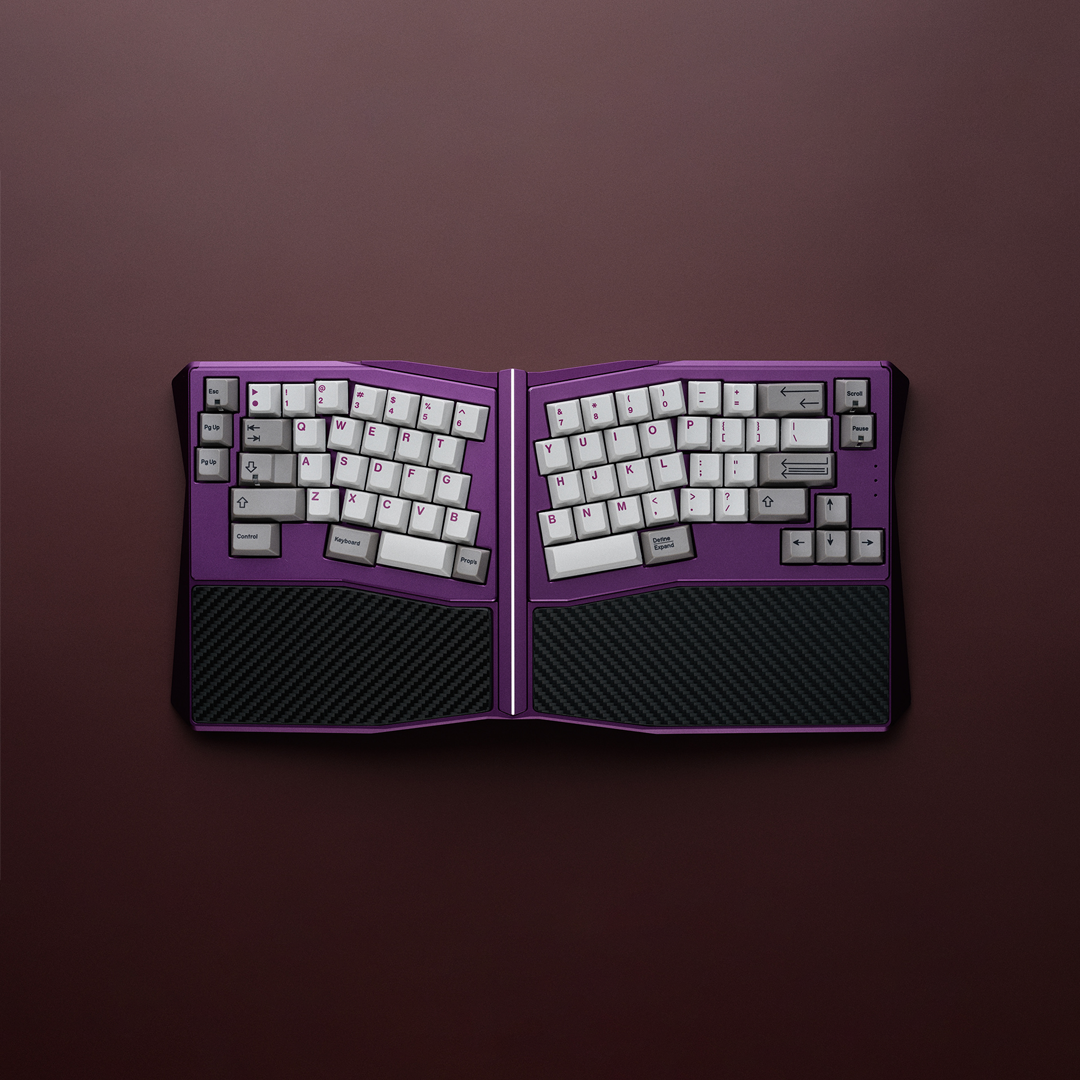

- PURPLE ( CENTER BAR : PURPLE-CLEAR, WRIST PAD : BLACK Leather)
