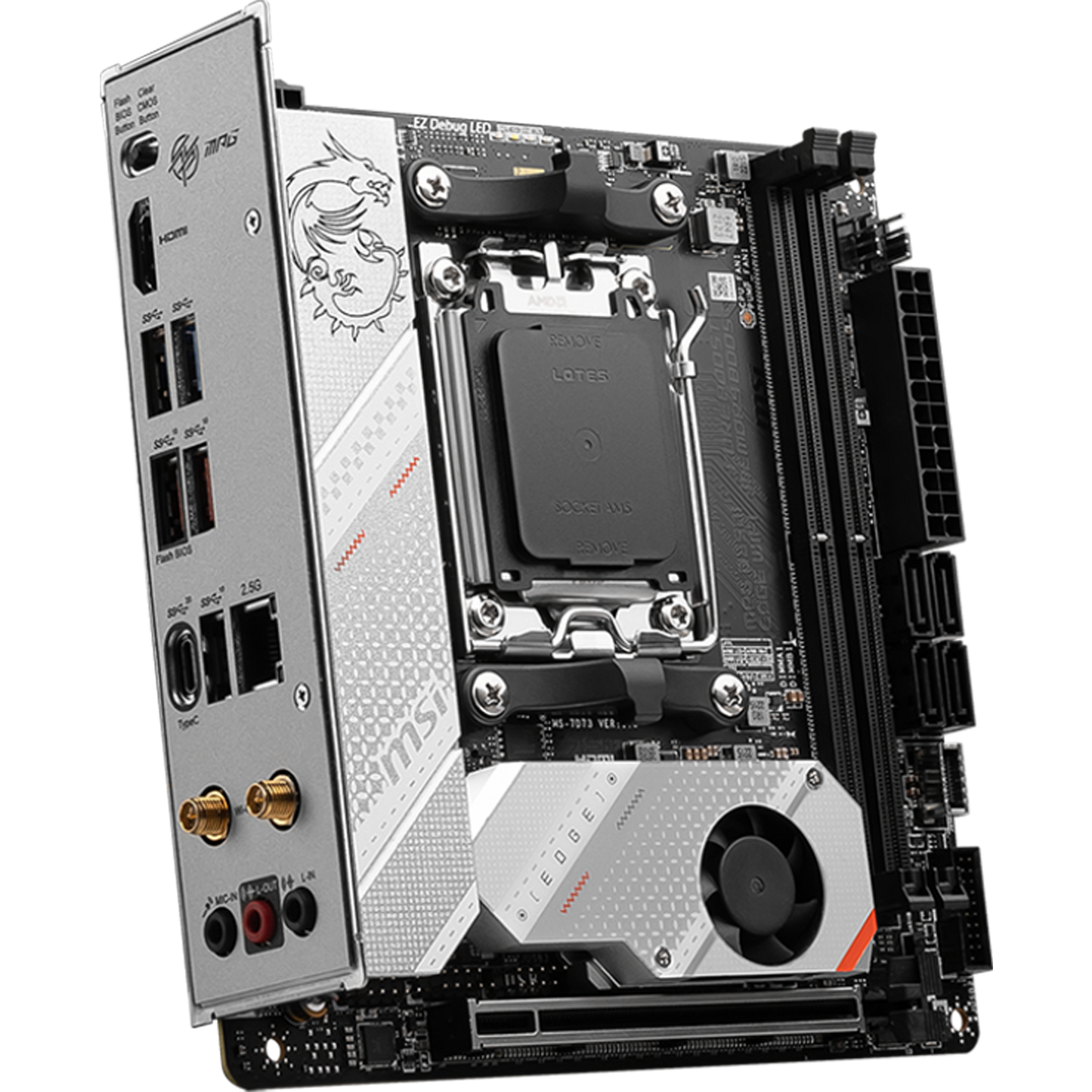

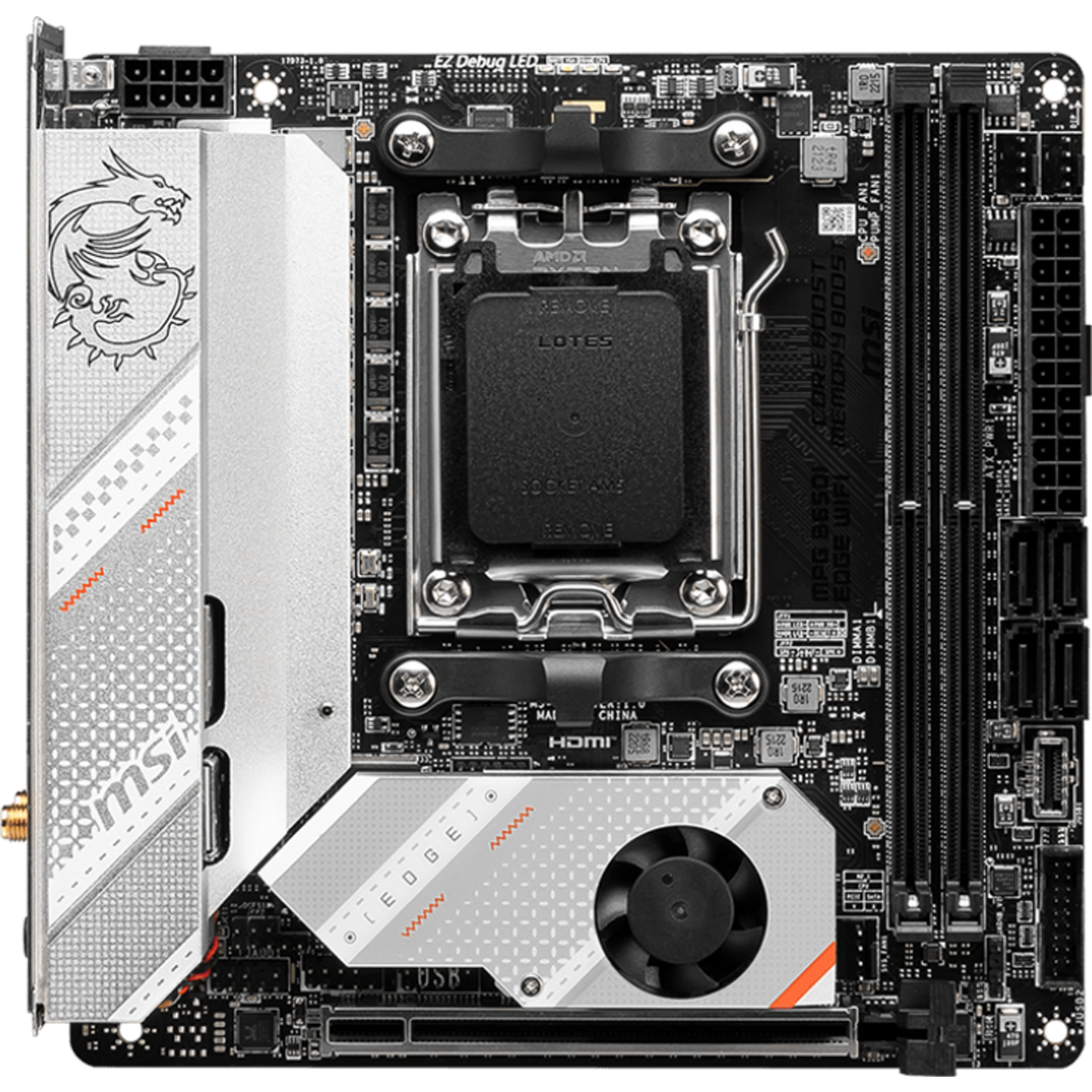

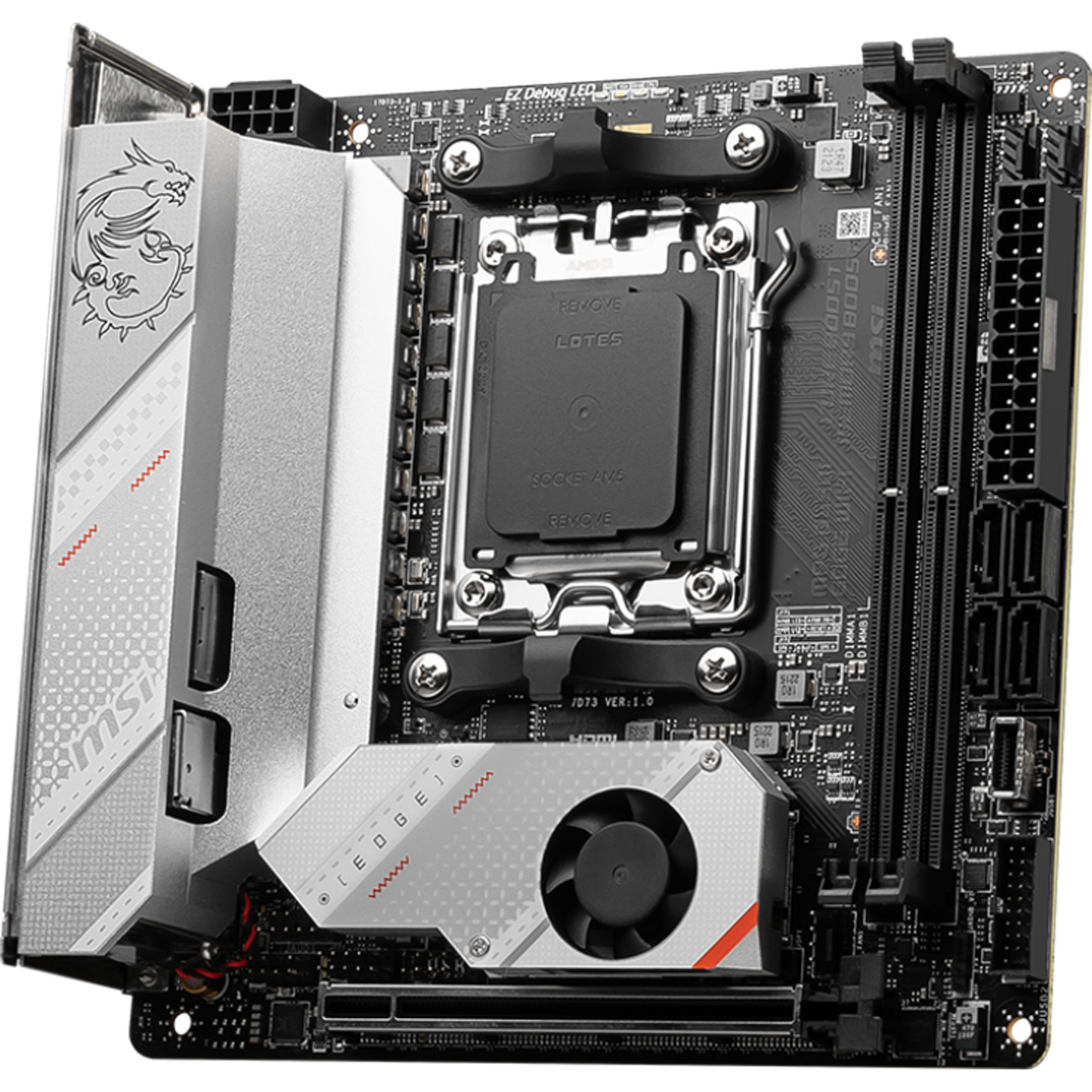

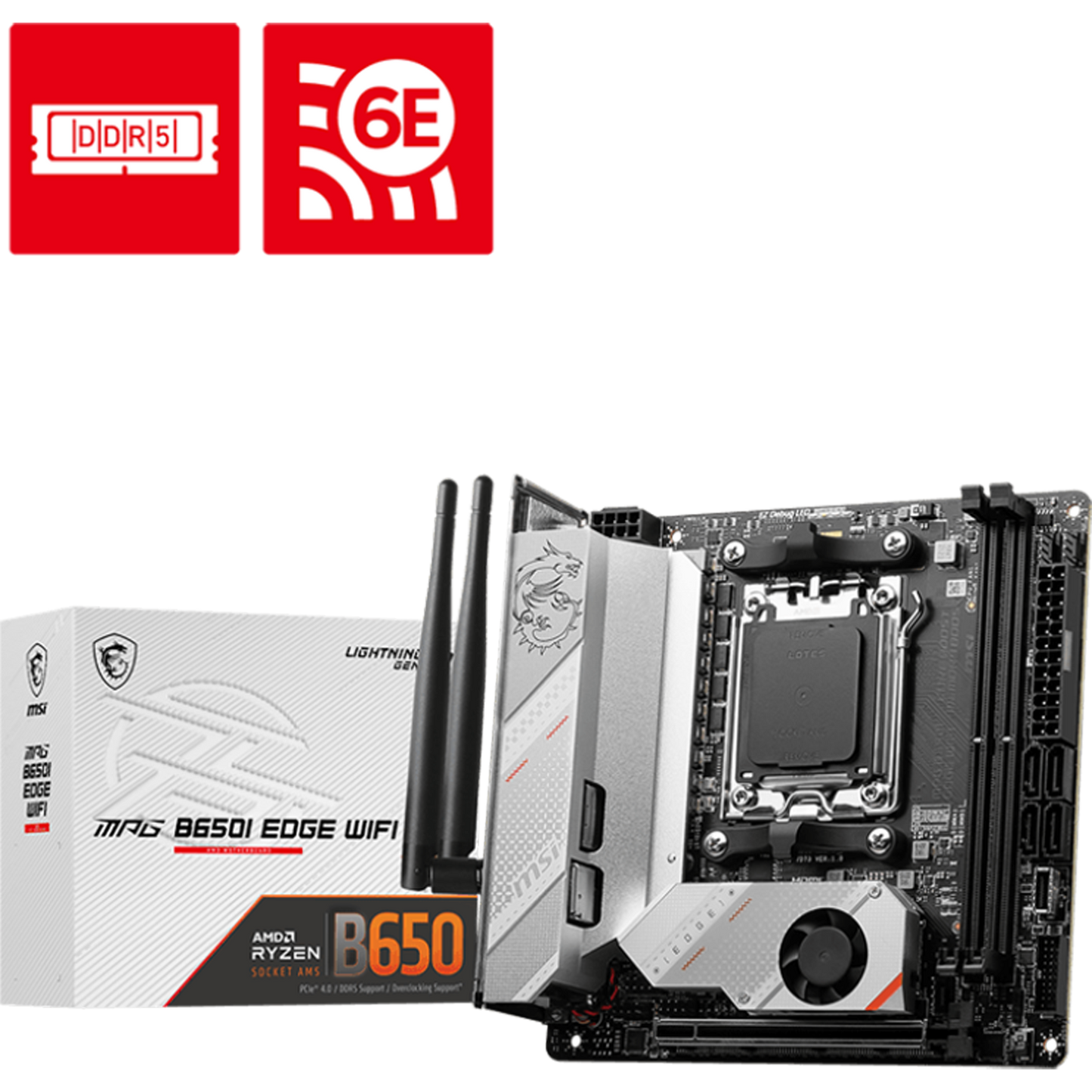

MSI MPG B650I Edge WiFi AM5 Mini-ITX Motherboard

MSI MPG B650I Edge WiFi AM5 Mini-ITX Motherboard

Regular price $217.00 USD
Regular price Sale price $217.00 USD
Sale Sold out

Chipset
- AMD B650

CPU
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Socket AM5


Memory
- 2x DDR5, Maximum Memory Capacity 96GB
- Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6000+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

Onboard Graphics
- 1x HDMI™
- Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slot
- 1x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

Storage
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G

Raid
- Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB
- 2x USB 2.0 (Front)
- 2x USB 3.2 Gen1 Type A (Rear)
- 2x USB 3.2 Gen1 Type A (Front)
- 3x USB 3.2 Gen2 Type A (Rear)
- 1x USB 3.2 Gen2 Type C (Front)
 1x USB 3.2 Gen2x2 Type C (Rear)

LAN
- Realtek® RTL8125BG 2.5Gbps LAN

Wireless/Bluetooth
- AMD Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.


Audio
- Realtek® ALC4080 Codec
- 7.1-Channel USB High Performance Audio
- Supports up to 32-Bit/384 kHz playback on front panel

Internal I/O
- 1x Power Connector(ATX_PWR)
- 1x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 1x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Addressable V2 RGB LED connector (JARGB_V2)
- 1x TPM pin header(Support TPM 2.0)
- 2x USB 2.0 ports
- 2x USB 3.2 Gen1 Type A ports
- 1x USB 3.2 Gen2 Type C ports

LED Feature
- 4x EZ Debug LED

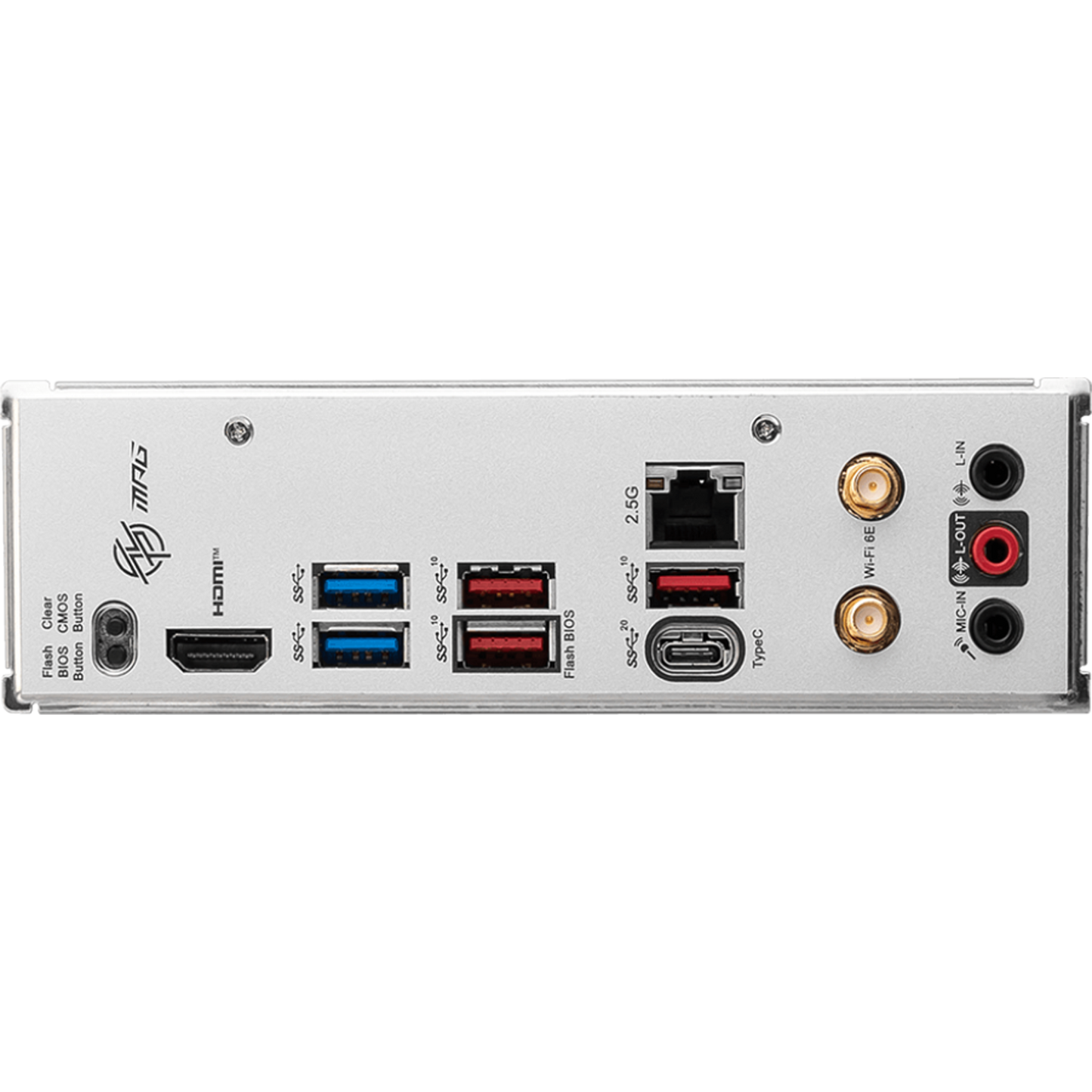

Back Panel Ports


  1. Clear CMOS Button
  2. USB 3.2 Gen 1 5Gbps (Type-A)
  3. 2.5G LAN
  4. Wireless / Bluetooth
  5. Audio Connectors
  6. Flash BIOS Button
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2x2 20Gbps (Type-C)

Operating System
- Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension (WxL)
- Mini-ITX
- 170mmx170mm
