Cafege60 v2 PCB

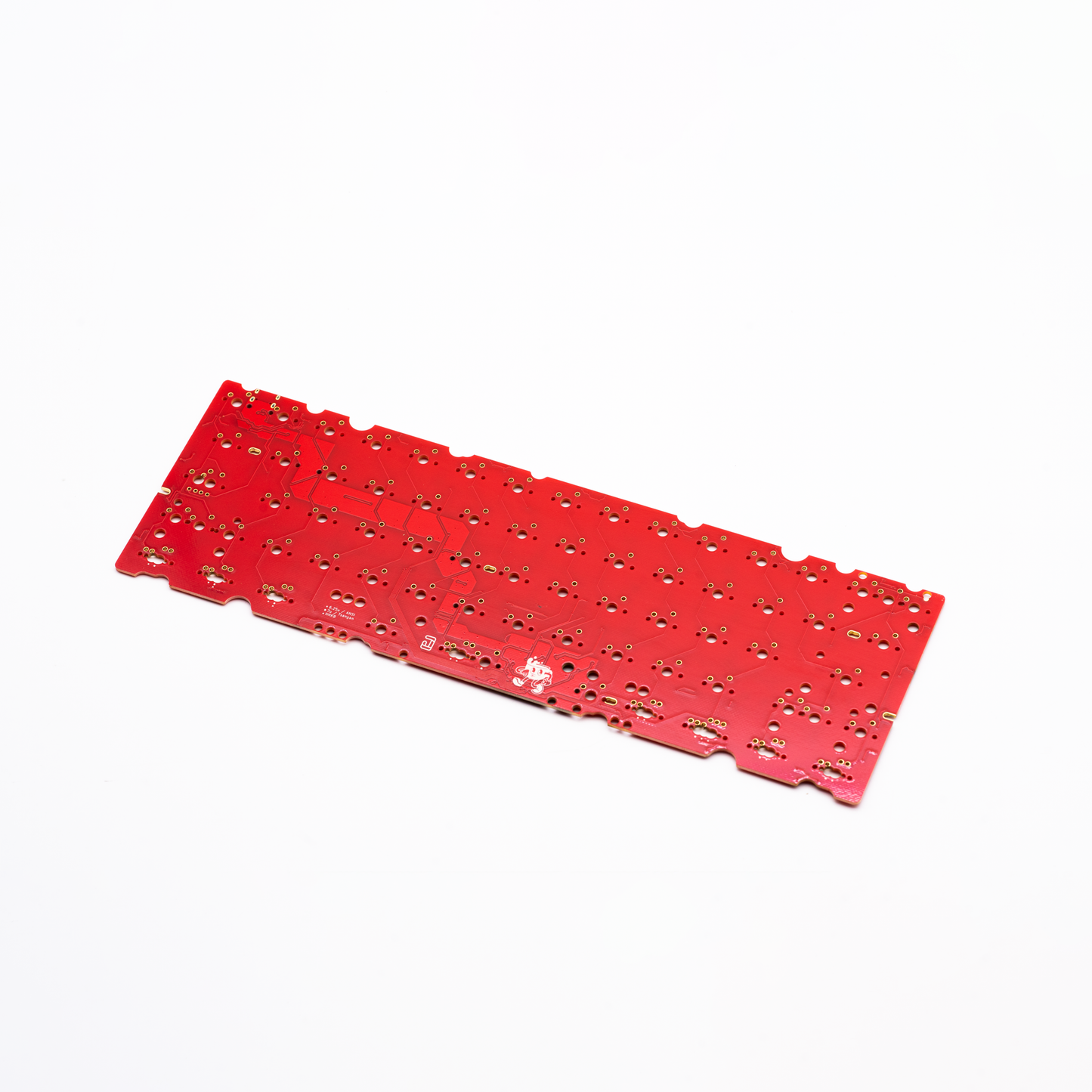

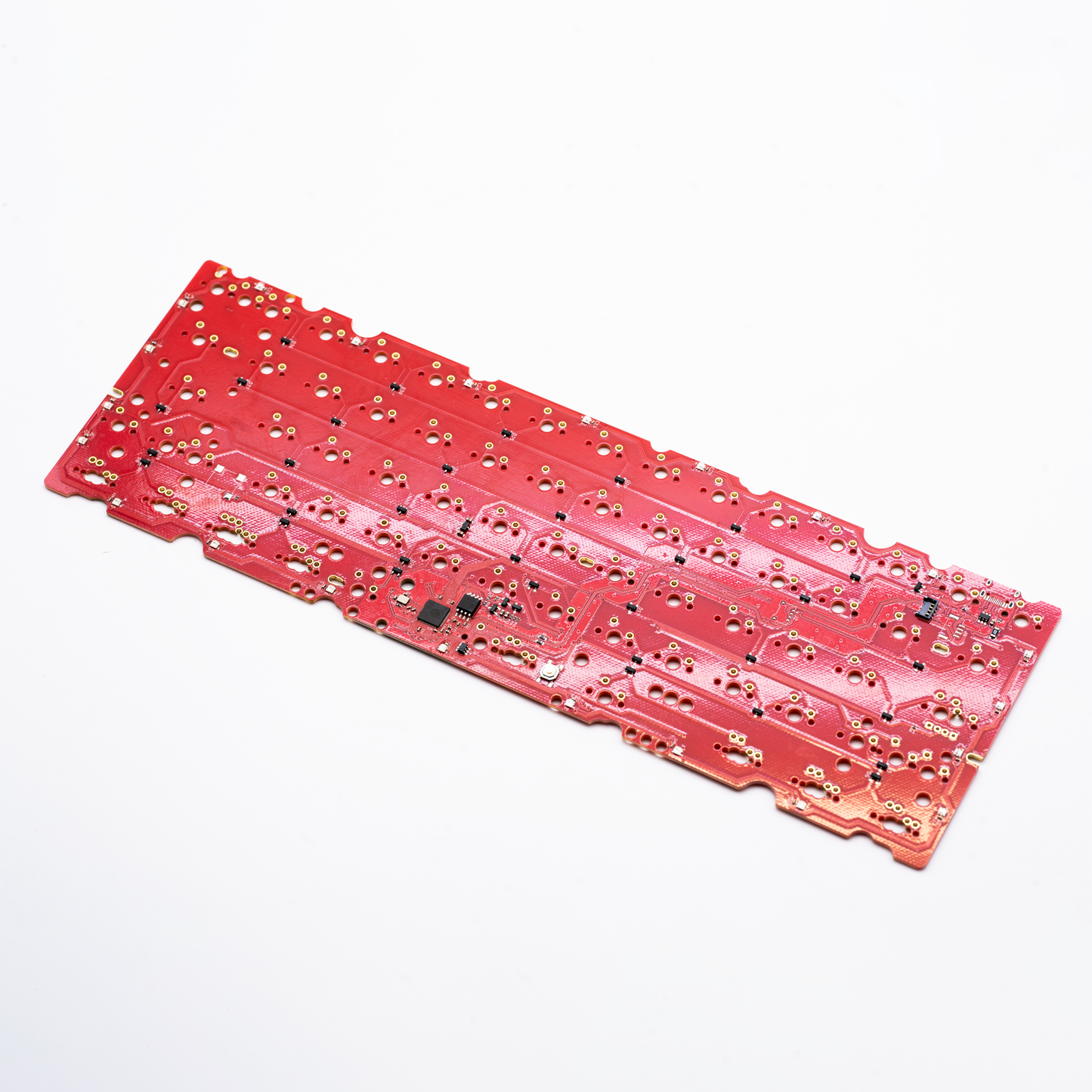

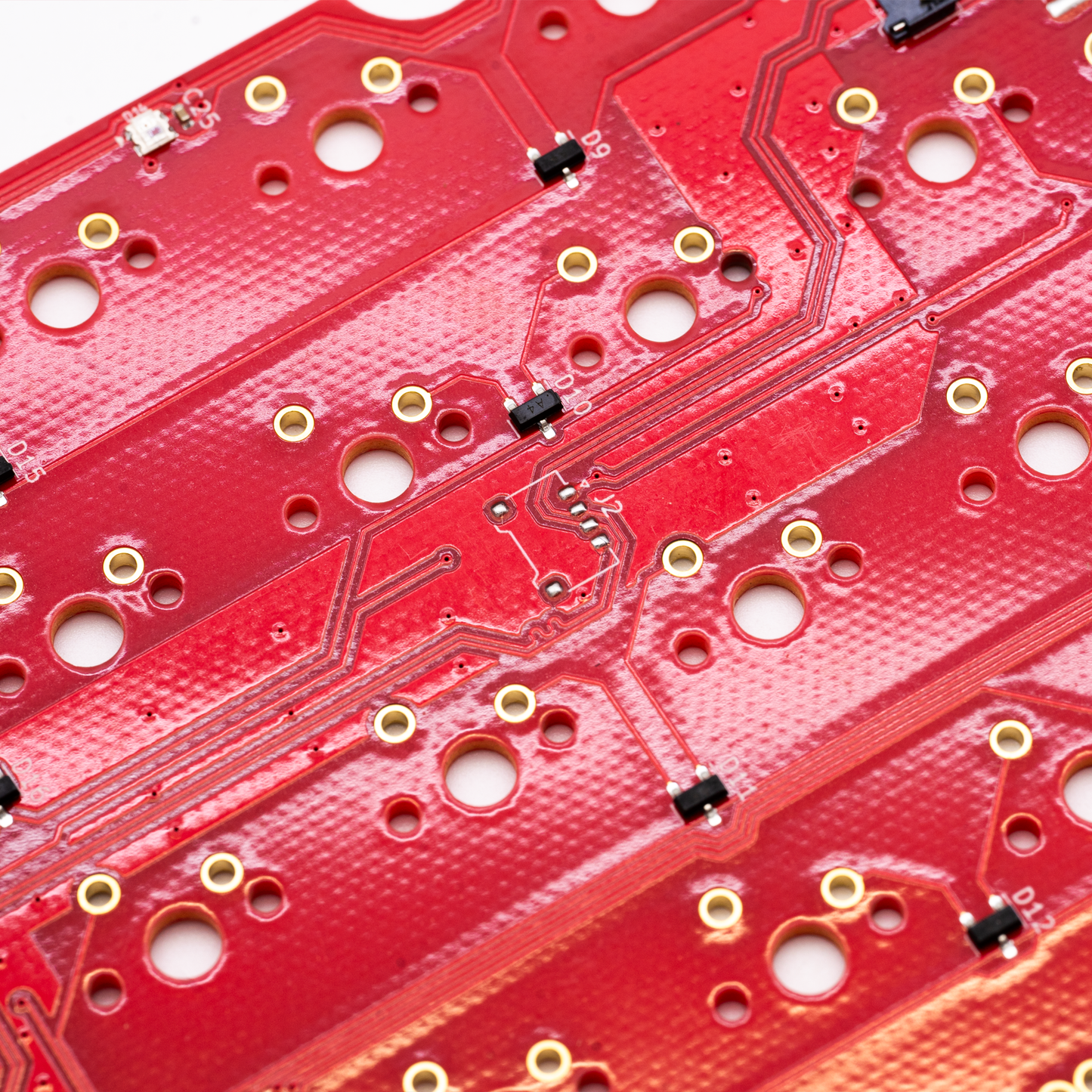

The Cafege60 PCB is a CEM3 Coreless PCB that utilises the molex connector with the option for the left side USB port.

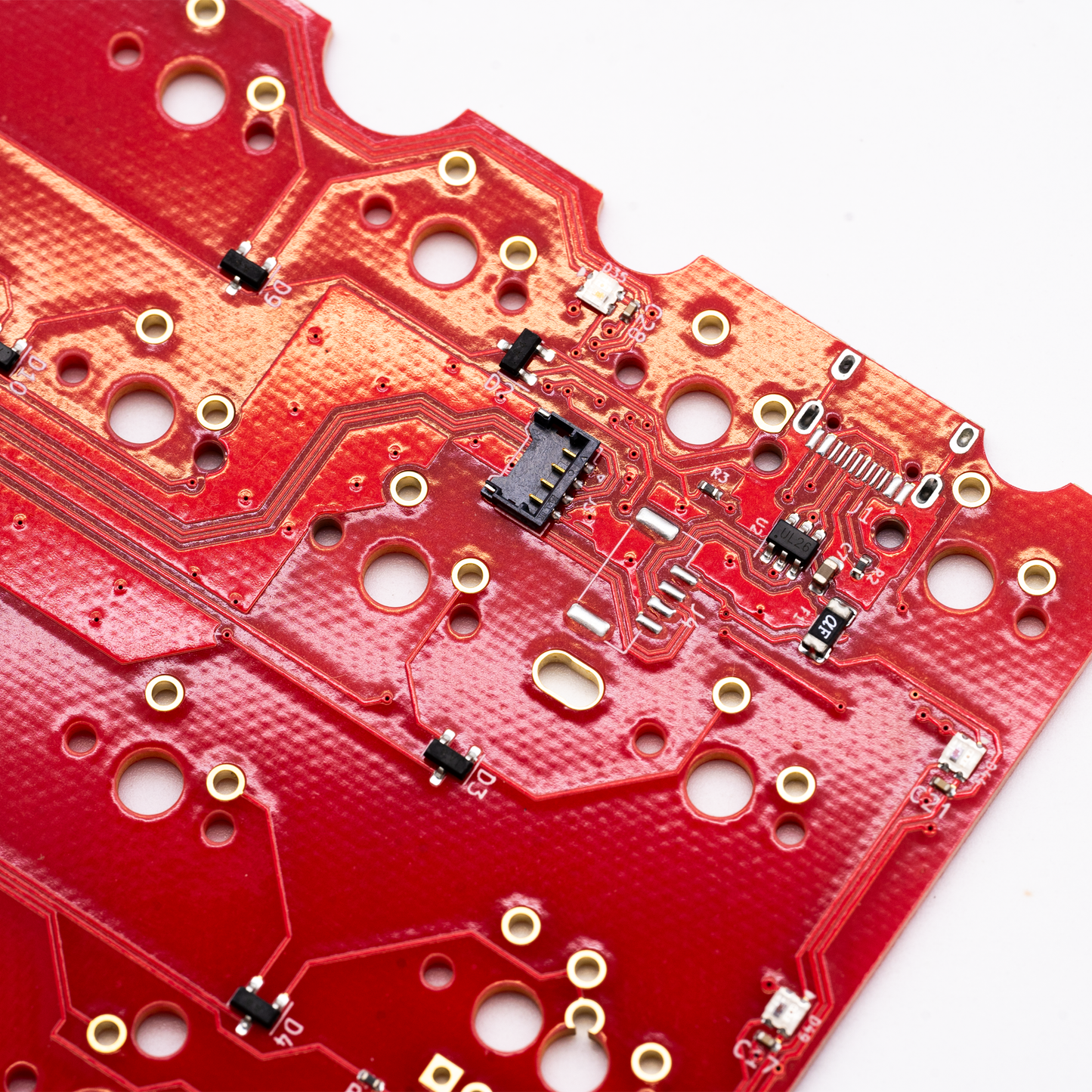

The molex connector is located on the same position as the Unikorn and can be used on the Unikorn with a Molex to JST cable found here

What's Included

• Cafege CEM3 Coreless PCB 1.6mm

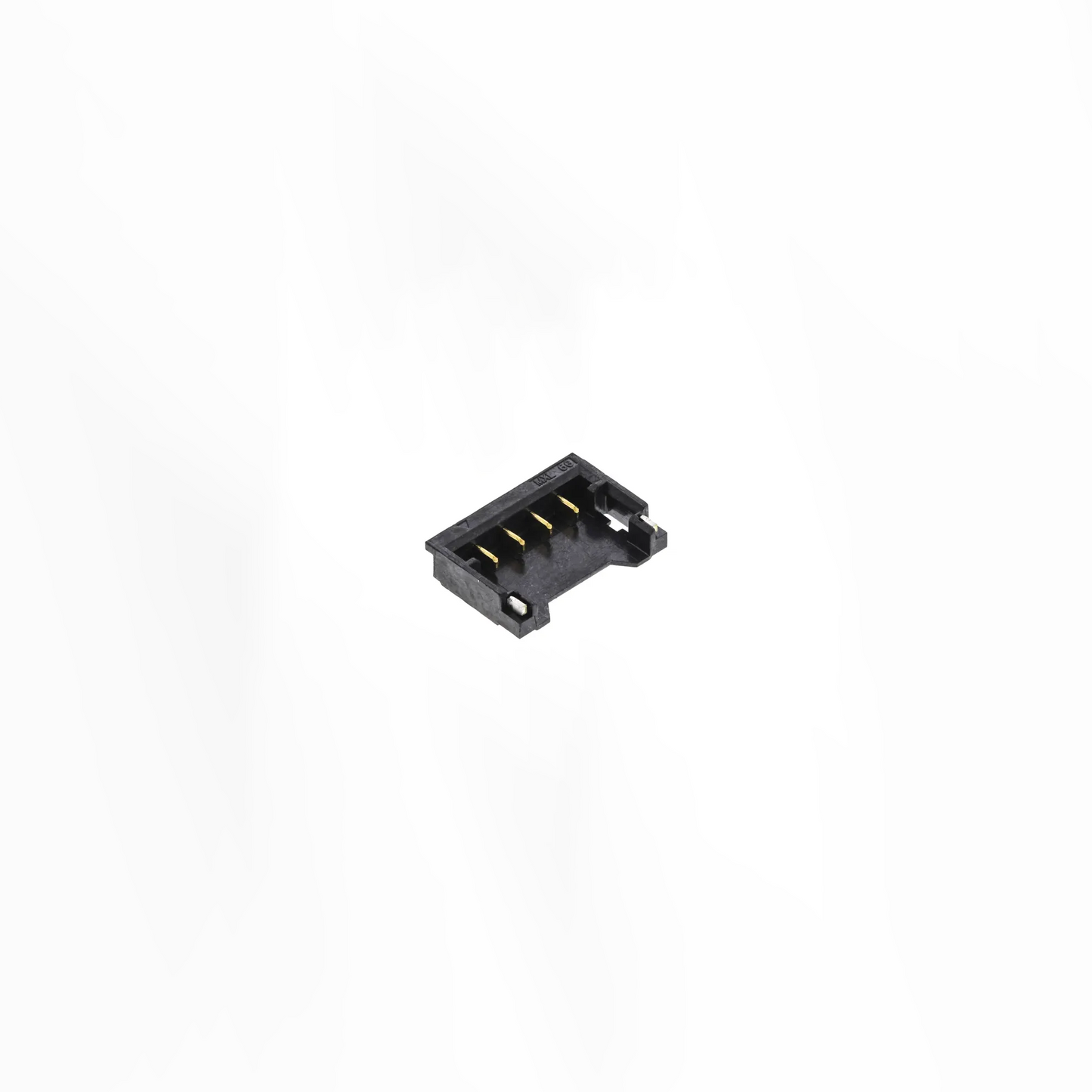

• Molex connector soldered on
• USB C SMD connector (needs soldering)
• RGB Underglow

Compatibility

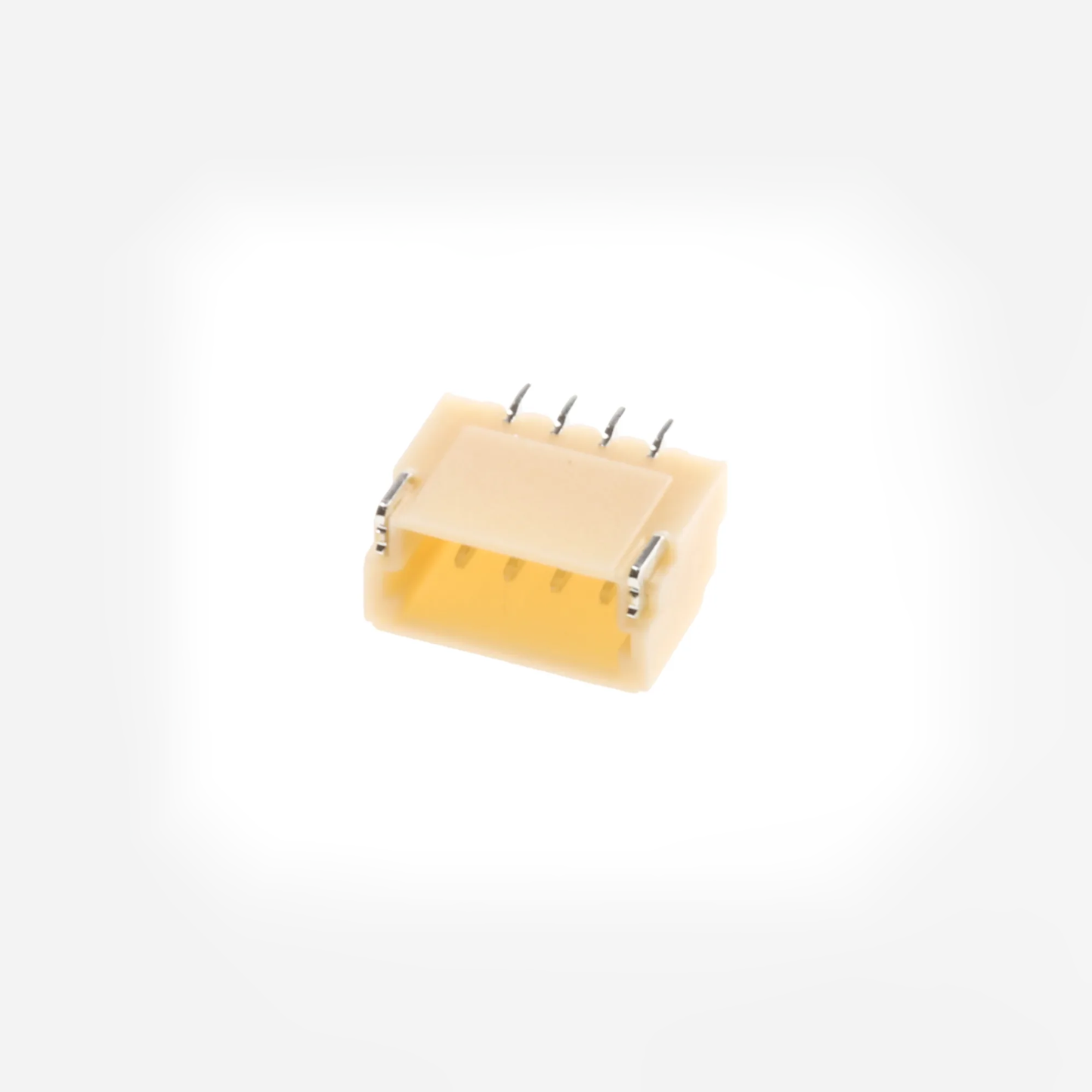

• JST connector pads for compatibility with H60 JST position keyboards
• Molex connector pads for compatibility with Unikorn jst position keyboards
• Revised USB (pads) position for most GH60 applications including the Frog Mini
• GH60 tray mount screw holes
