GEON x NUXROS KeySnap

KEYSNAP?

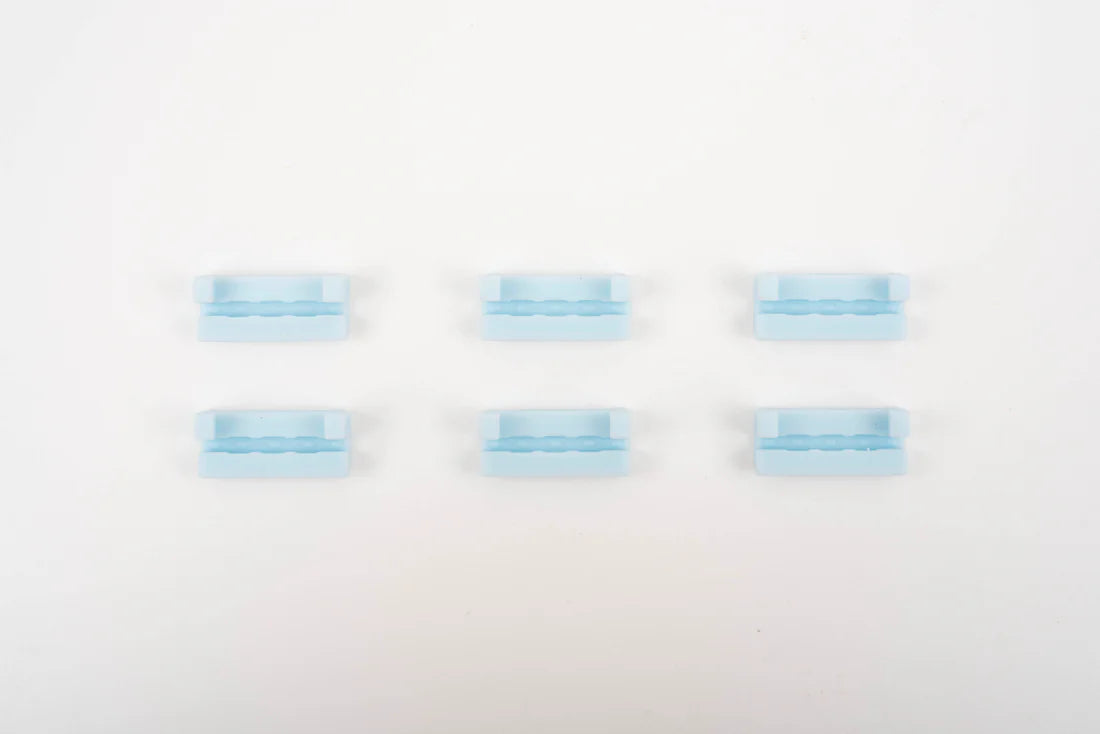

It offers a simple and convenient alternative to the Gummy O-ring mount.

Material: Silicone 70A / FKM 70A

Example photos of mounting on the PCB and plate

Example photos of KeySnap assembly

Vertical coverage size of the PCB: 94.0 ± 0.2 mm

Make sure to install the KeySnap while avoiding the indicated area.

If the KeySnap is installed overlapping the marked area, interference will occur between the case and the PCB, preventing proper case assembly.

KeySnap can also be used with Hotswap PCBs.
When used with Hotswap PCBs, the KeySnap may fit tightly against the sockets, making assembly more difficult compared to soldered or HE PCBs.

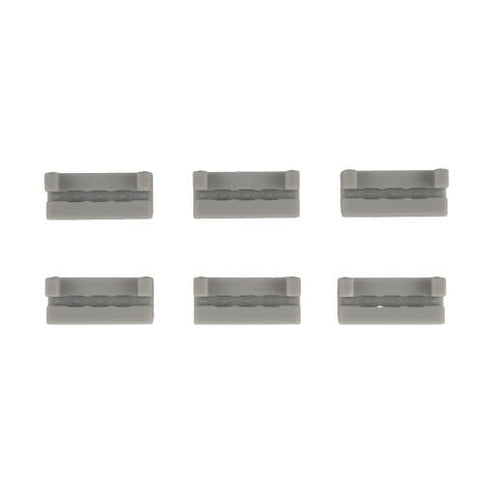

KeySnap made of silicone (gray color) that fits tightly with Hotswap PCB sockets is compatible.

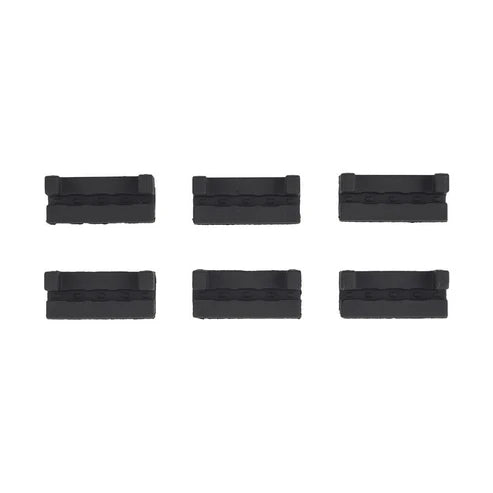

When using KeySnap made of KFM (black color), it is recommended to use no more than two on the top side.
