Switch Sliders

Switch Sliders to be used with Cherry Switches

Each pack is sold with 100 sliders

Measurements below are based on Cherry Switches

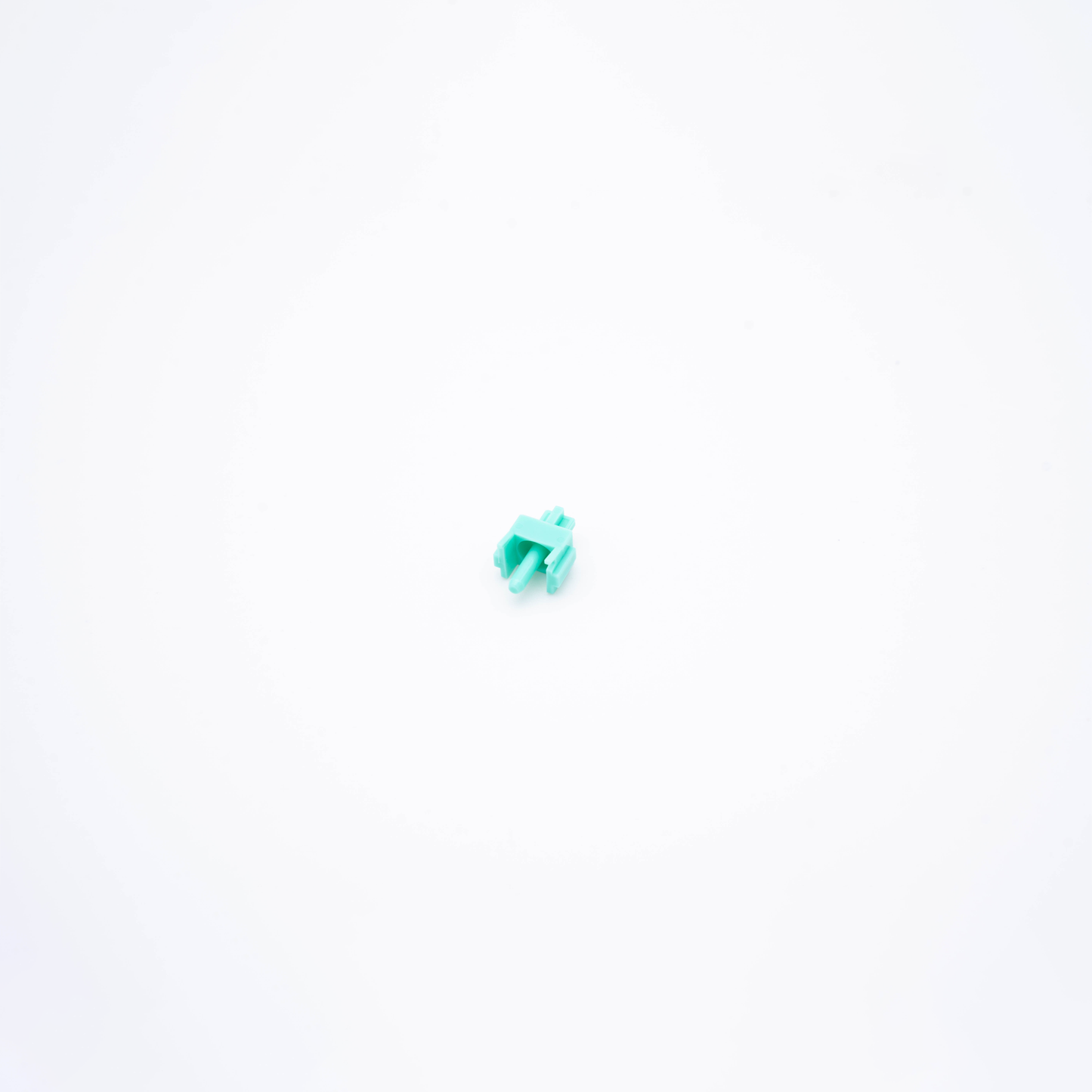

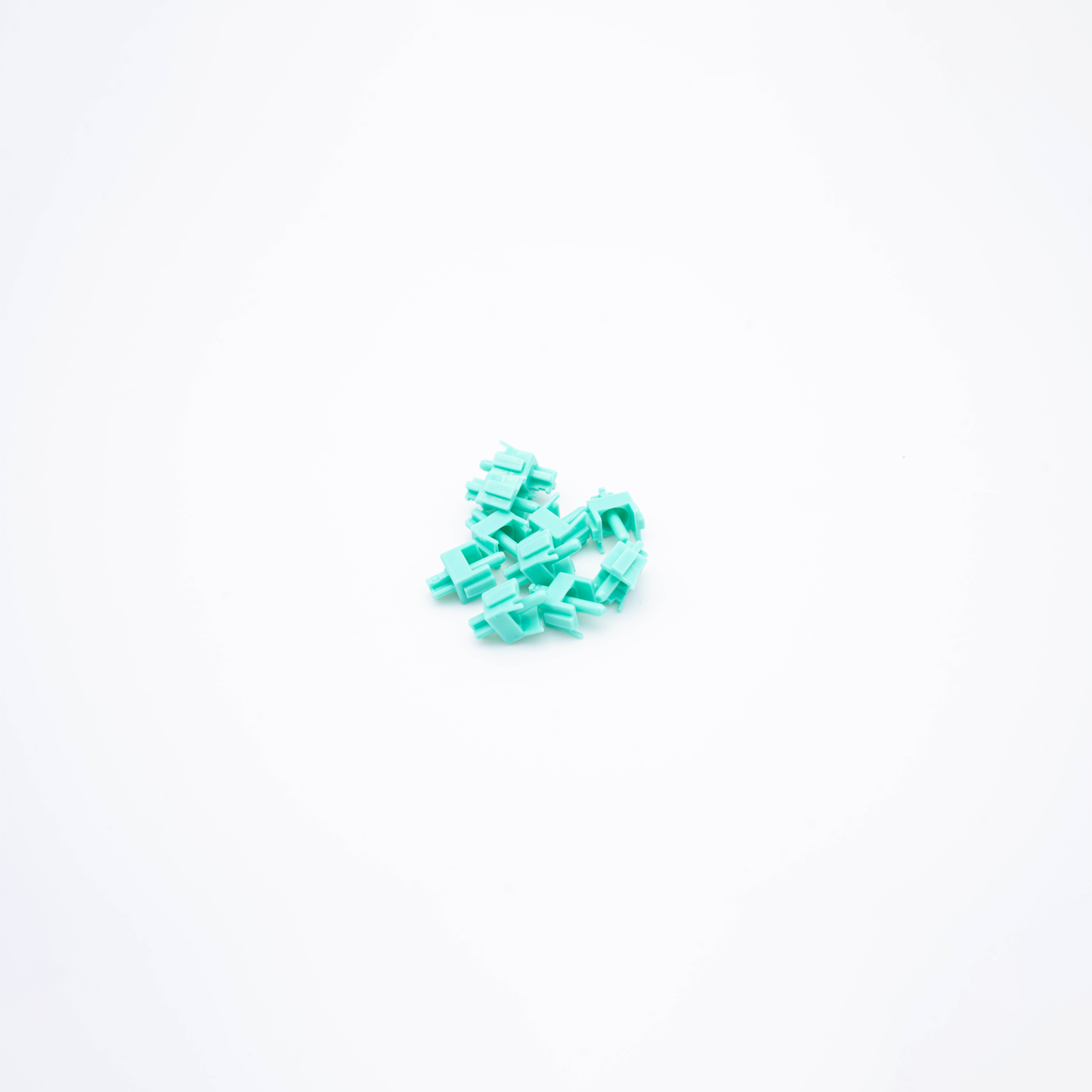

Teal Slider
Type - Linear
Length - 13.05mm (±0.1mm)
Pre-Travel - 1.0mm (±0.2mm)
Total Travel - 3.95mm (±0.1mm)
Material - POM

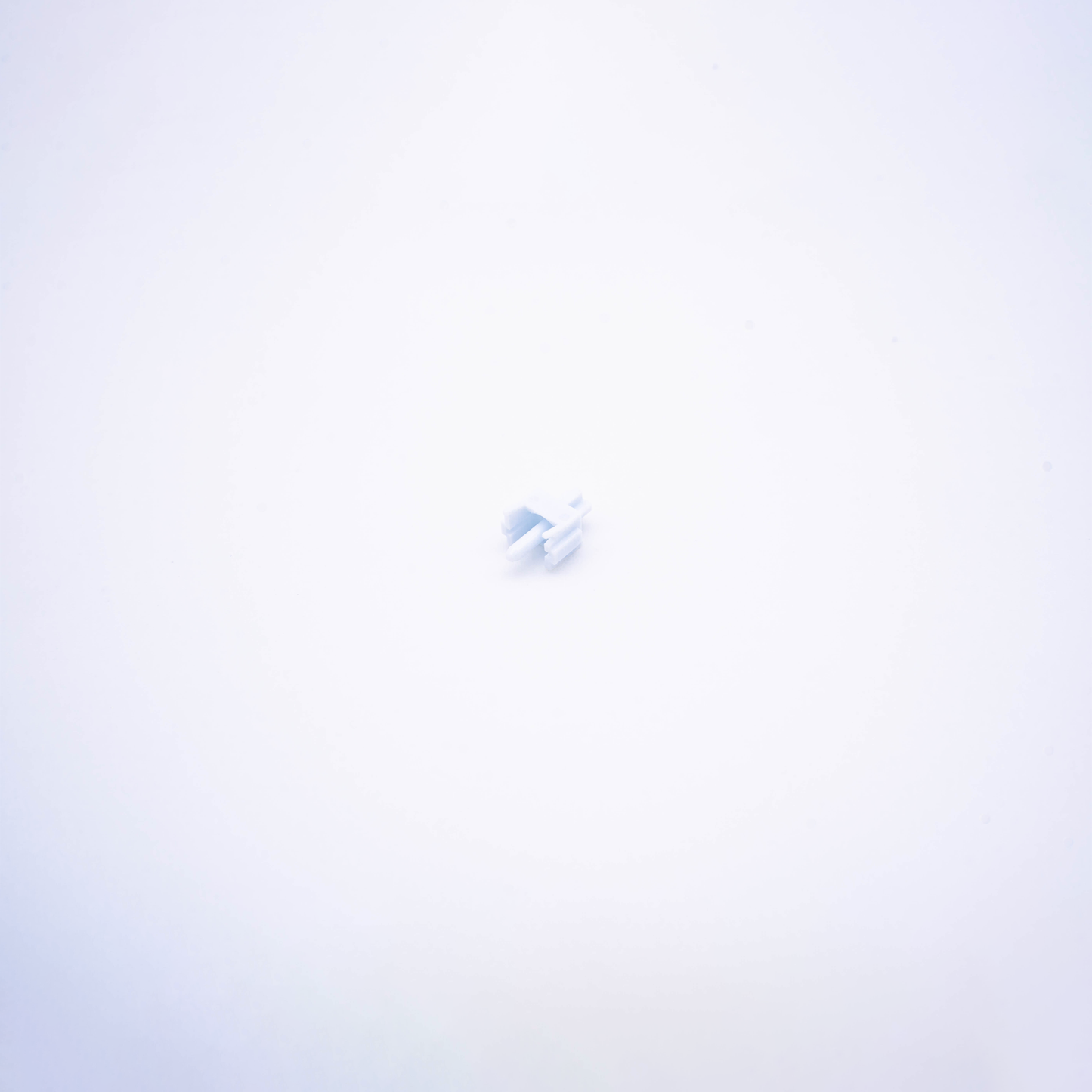

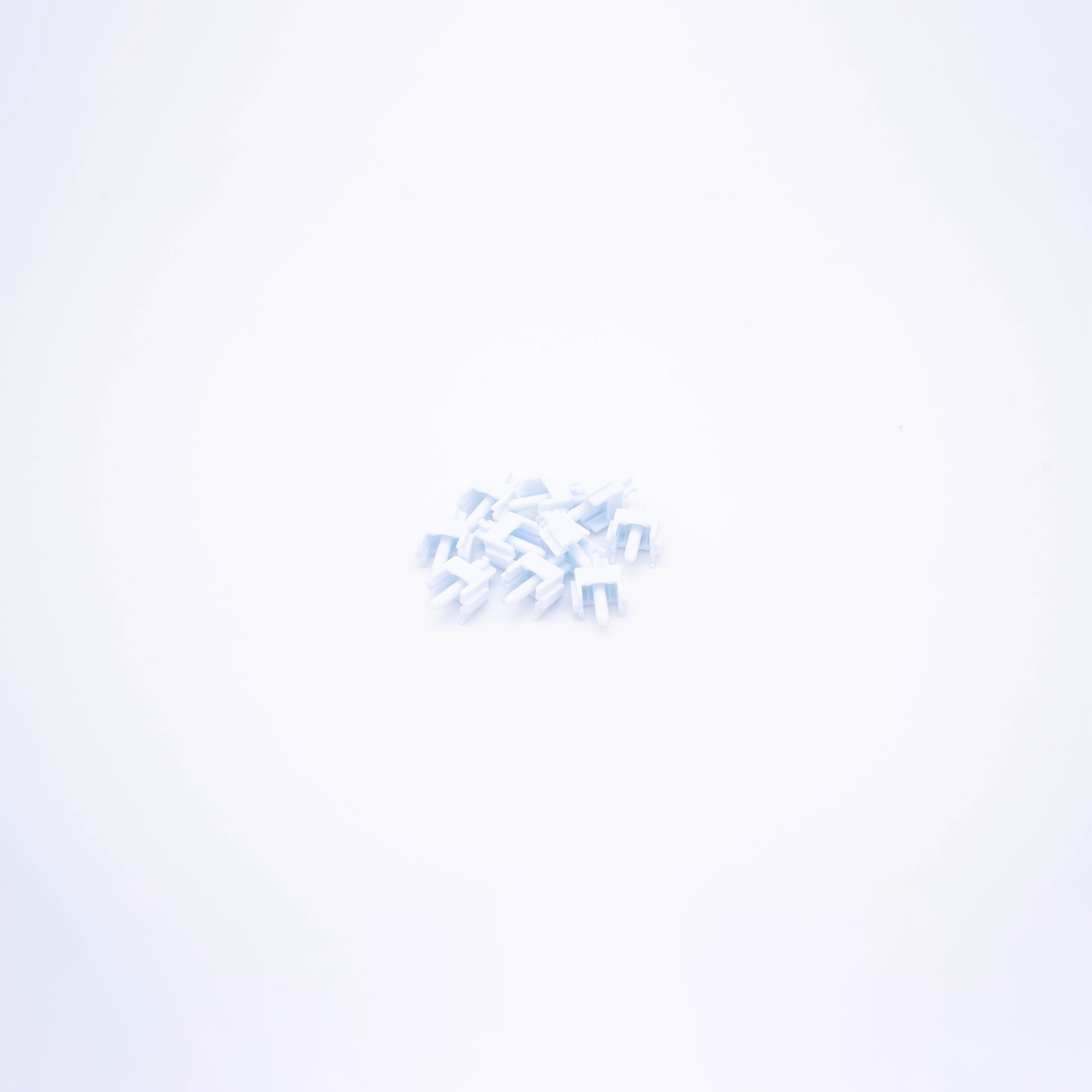

Snow Slider
Type - Linear
Length - 13.30mm (±0.1mm)
Pre-Travel - 1.0mm (±0.2mm)
Total Travel - 3.7mm (±0.1mm)
Material - POM

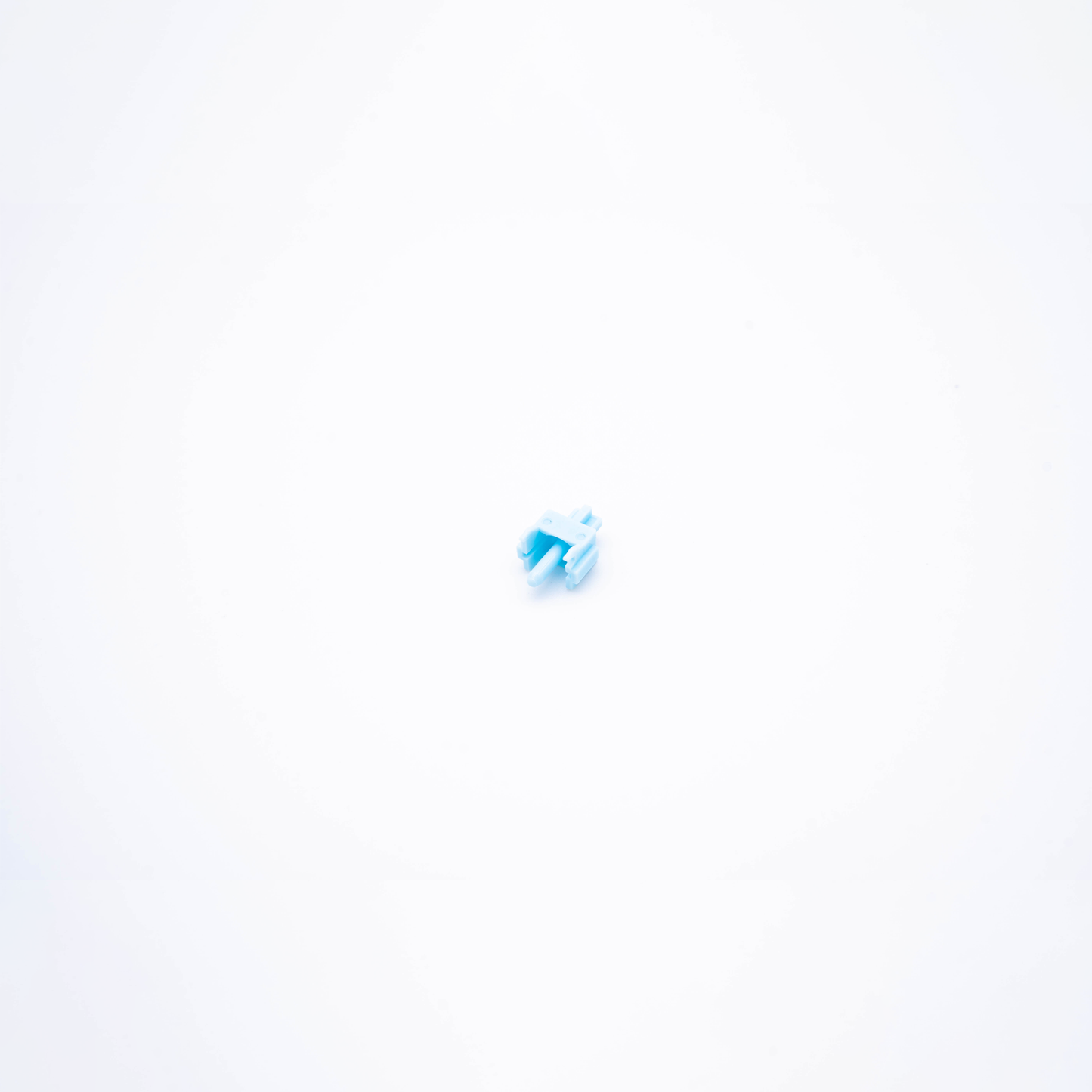

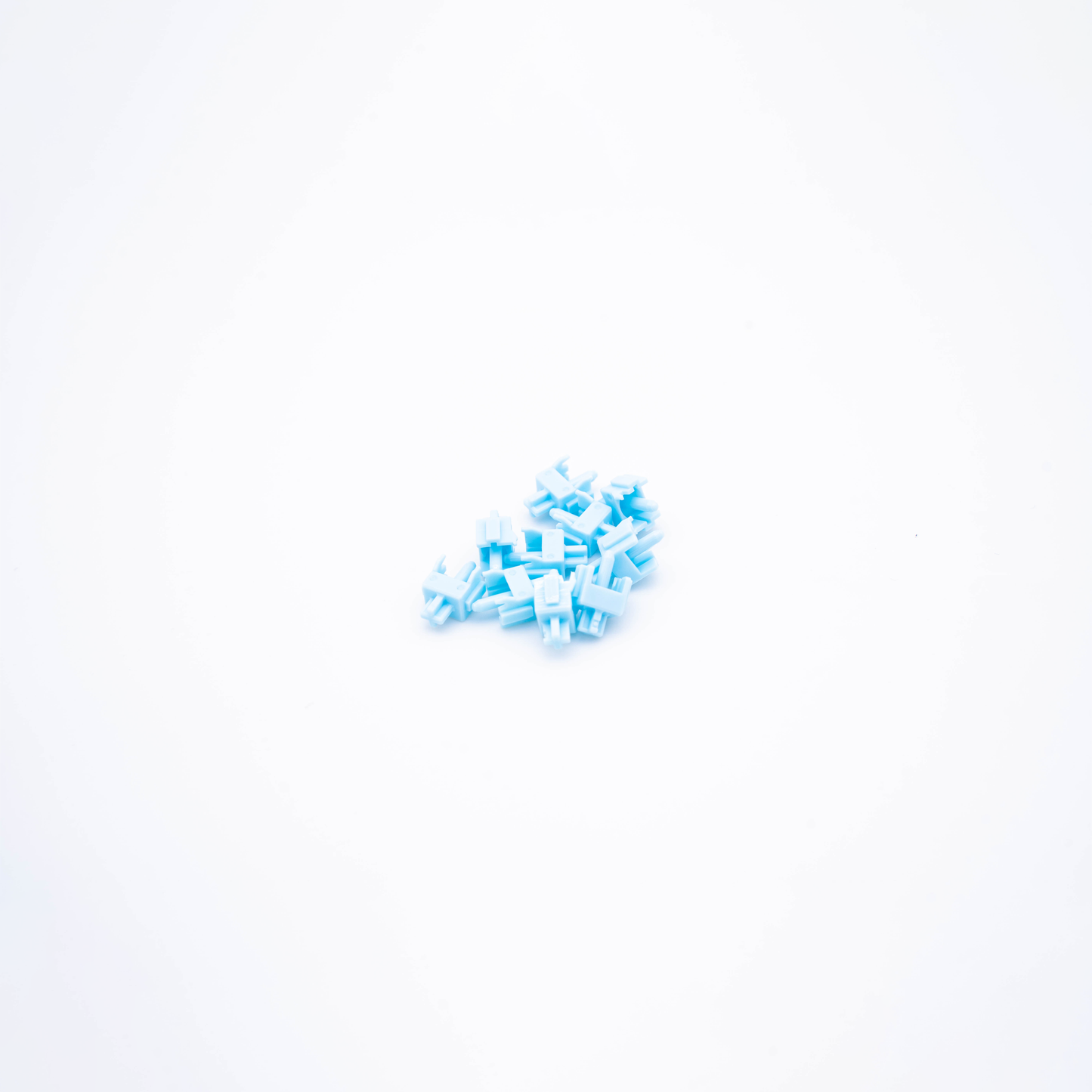

Baby blue Slider
Type - Tactile
Length - 13.30mm (±0.1mm)
Pre-Travel - 1.0mm (±0.2mm)
Total Travel - 3.7mm (±0.1mm)
Material - POM

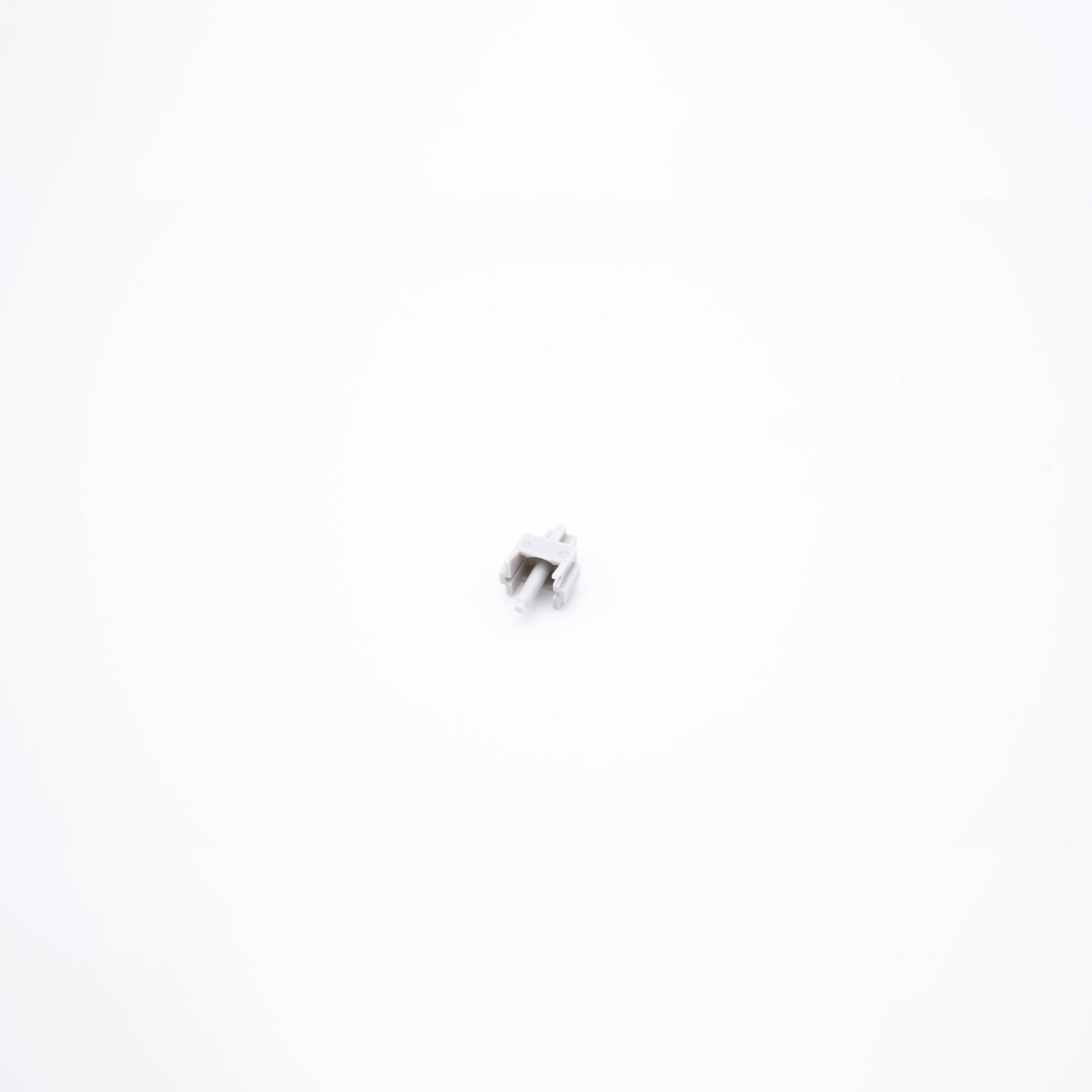

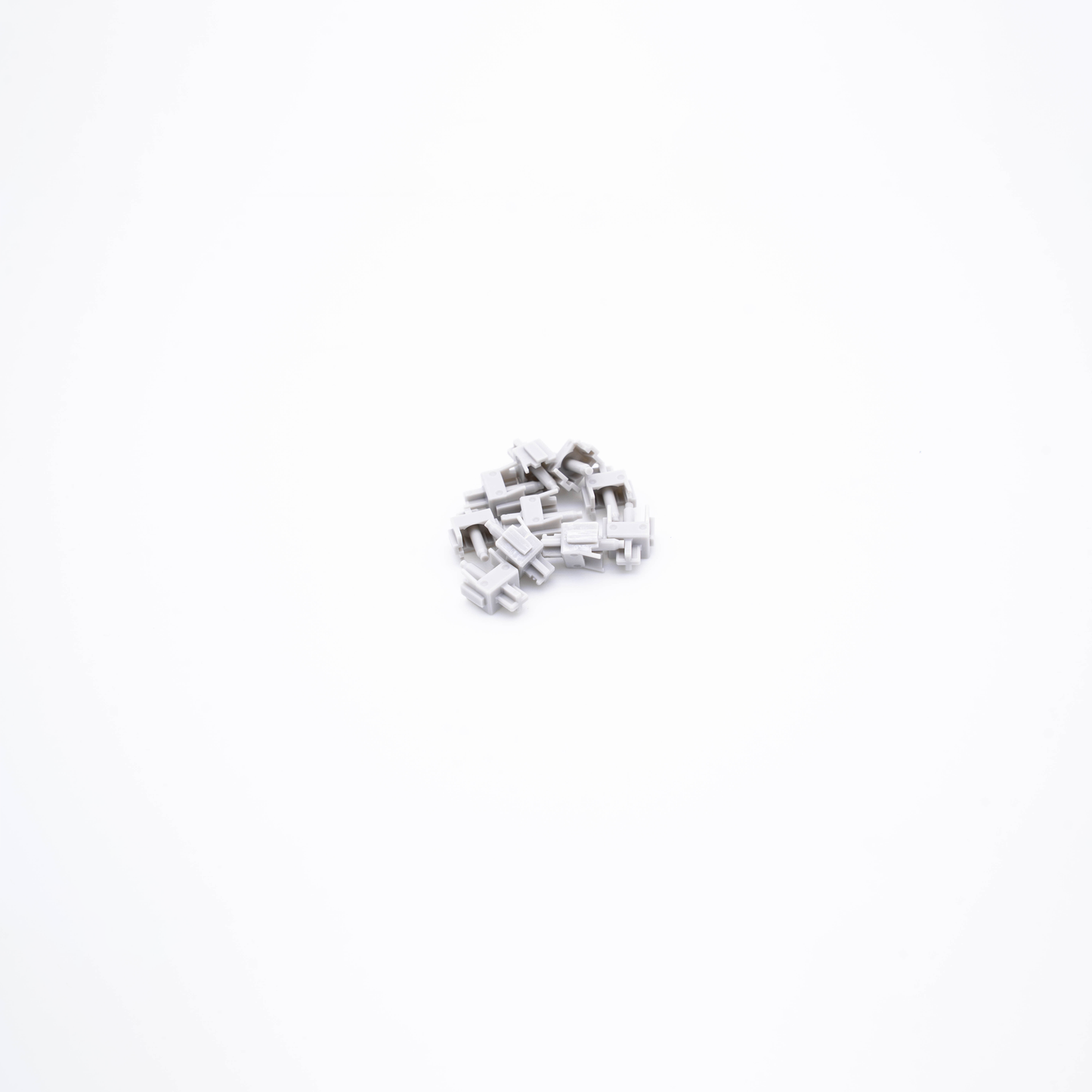

Cloud Slider
Type - Linear
Length - 13.55mm (±0.1mm)
Pre-Travel - 1.0mm (±0.2mm)
Total Travel - 3.45mm (±0.1mm)
Material - POM

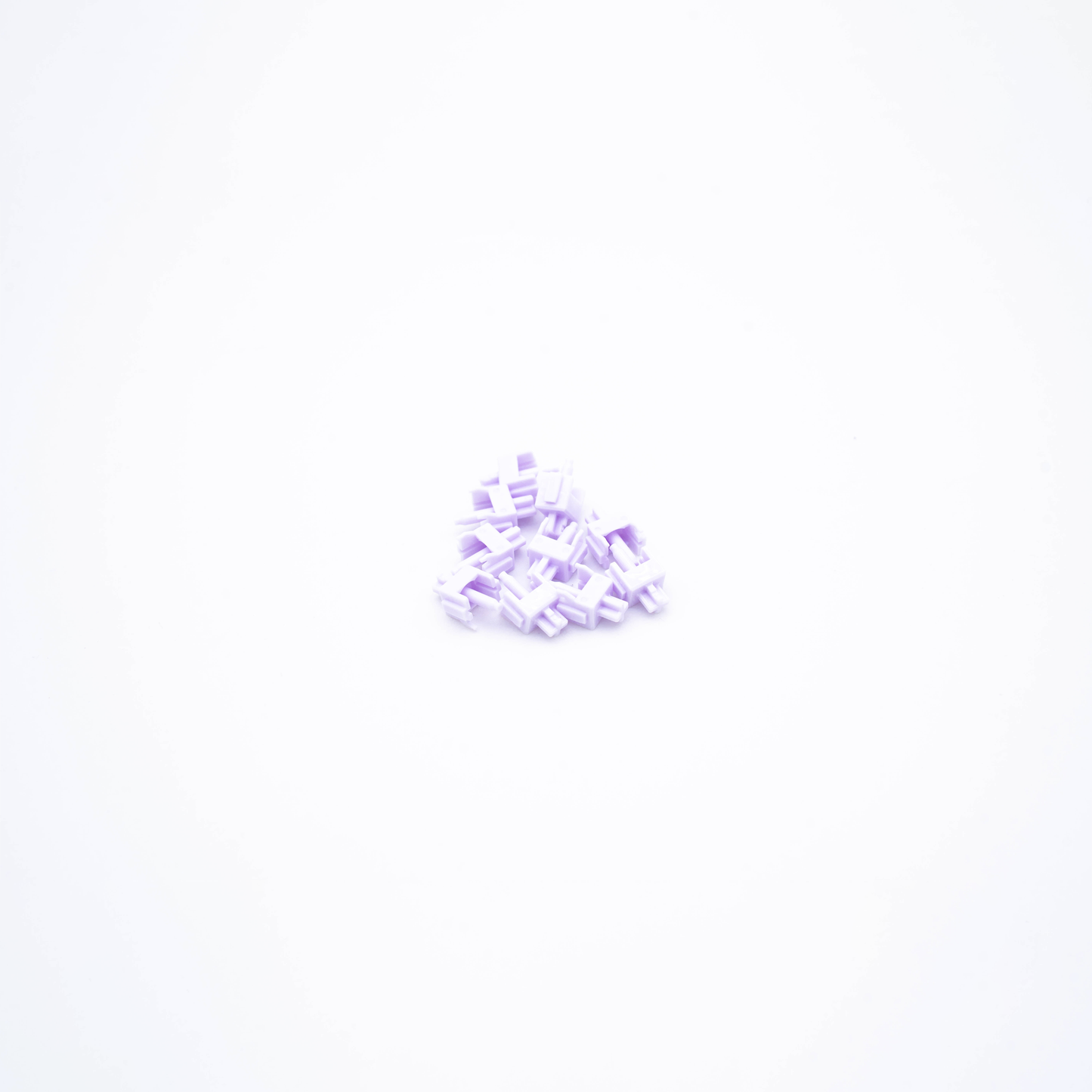

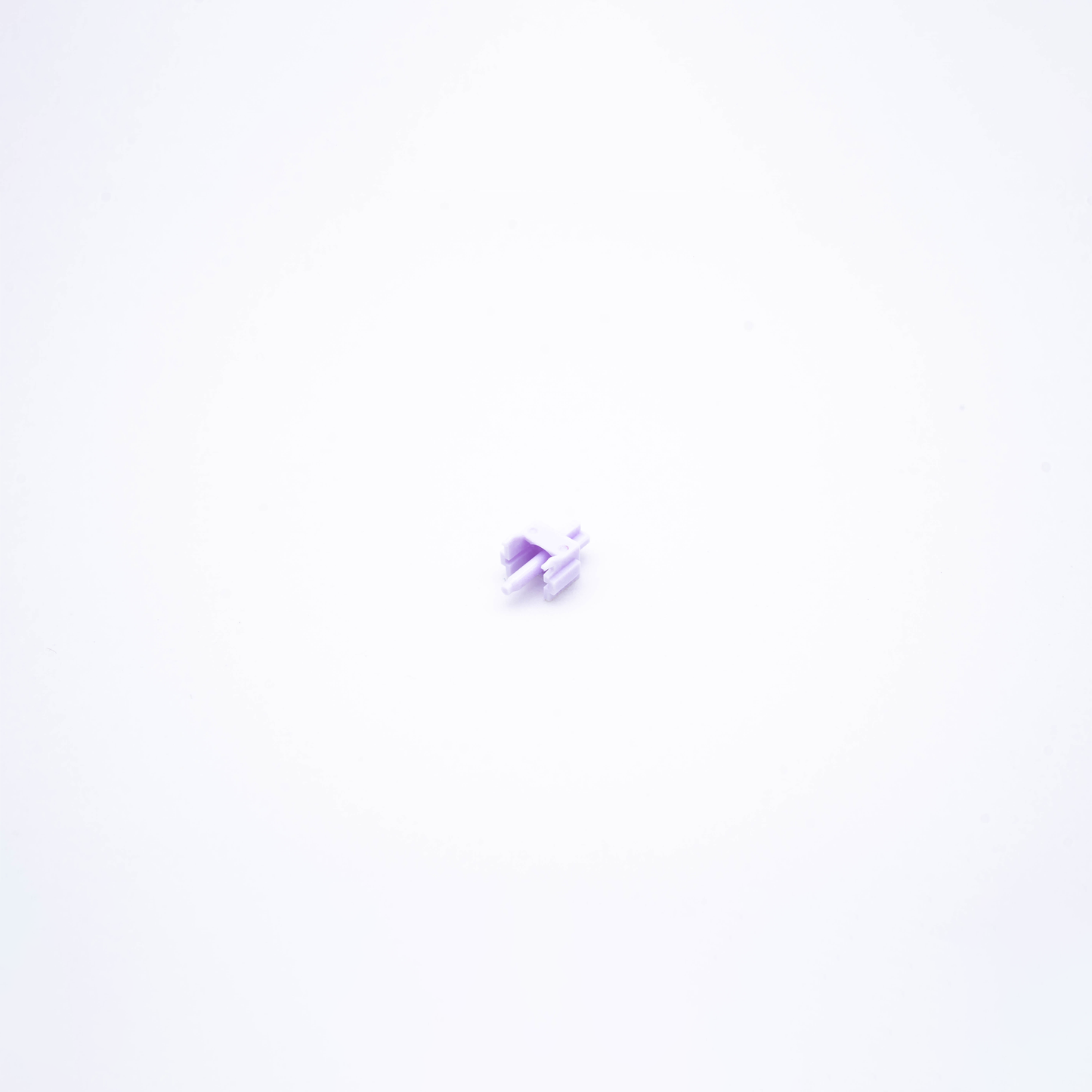

Lavender Slider
Type - Tactile
Length - 13.55mm (±0.1mm)
Pre-Travel - 1.0mm (±0.2mm)
Total Travel - 3.45mm (±0.1mm)
Material - POM

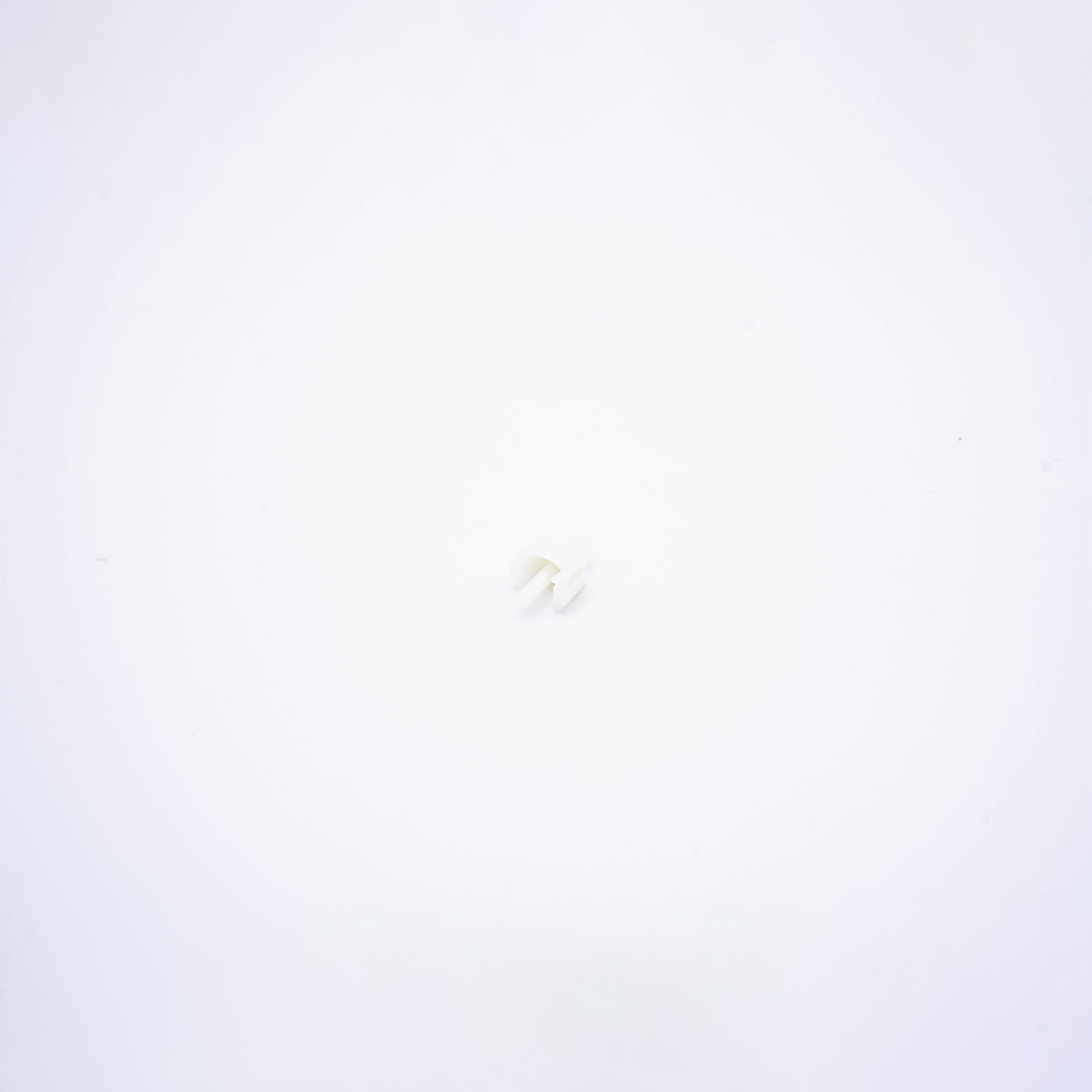

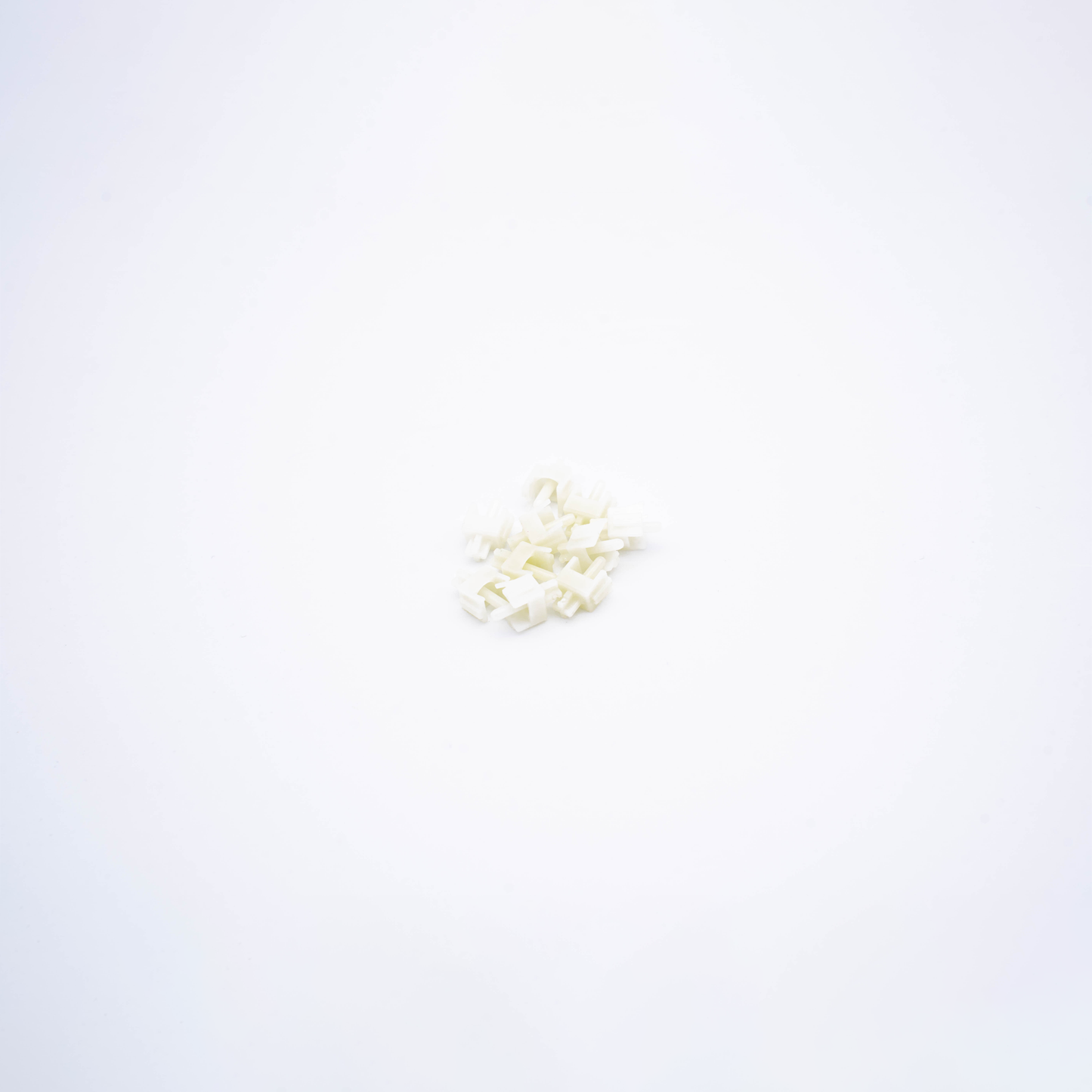

Pure Slider
Type - Linear
Length - 13.05mm (±0.2mm)
Pre-Travel - 1.0mm (±0.2mm)
Total Travel - 3.95mm (±0.2mm)
Material - POM + PTFE 20%

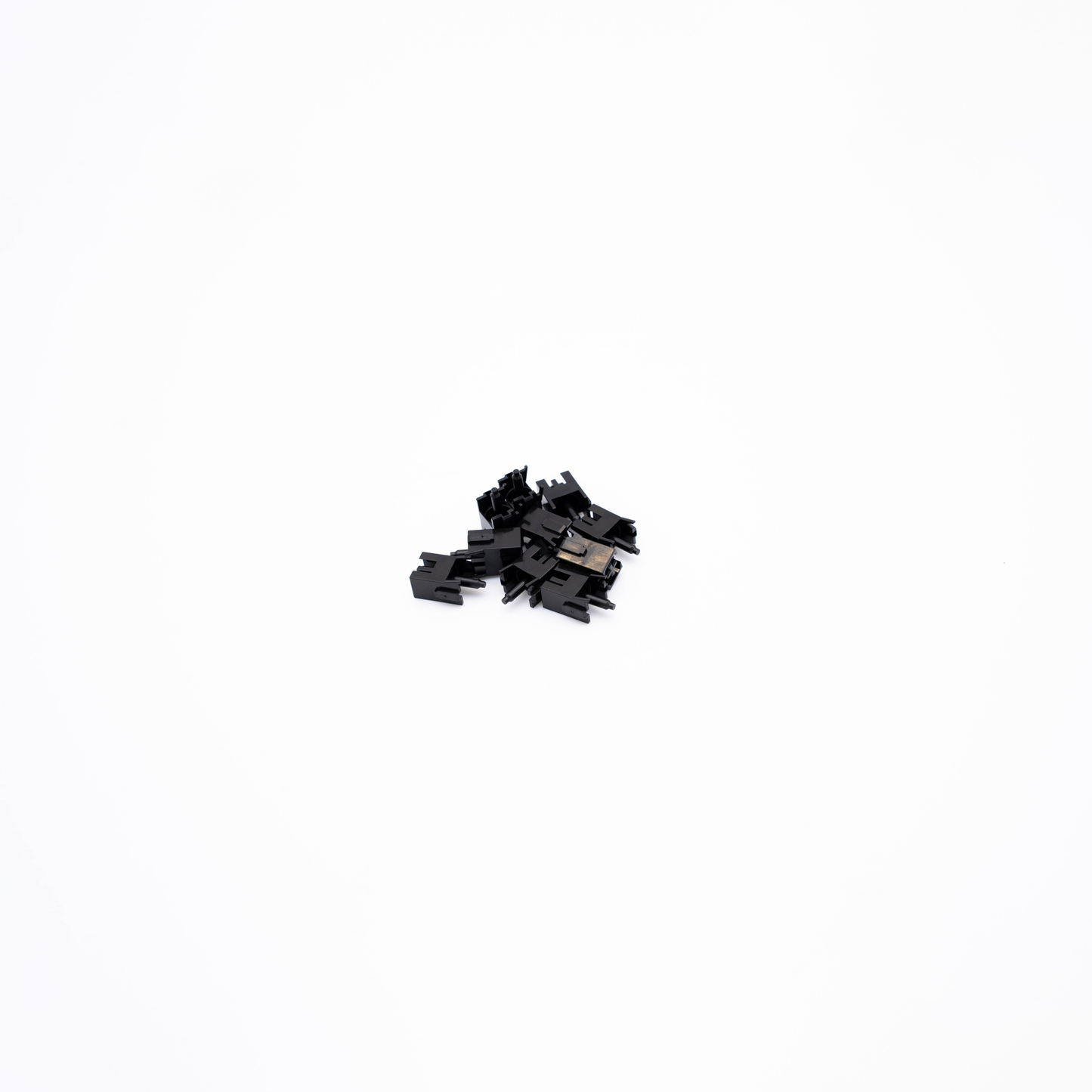

Black Slider
Type - Linear / Box stem
Length - 13.45mm (±0.2mm)
Pre-Travel - 1.5mm (±0.3mm)
Total Travel - 3.6mm (±0.2mm)
Material - POM + PTFE 5%
